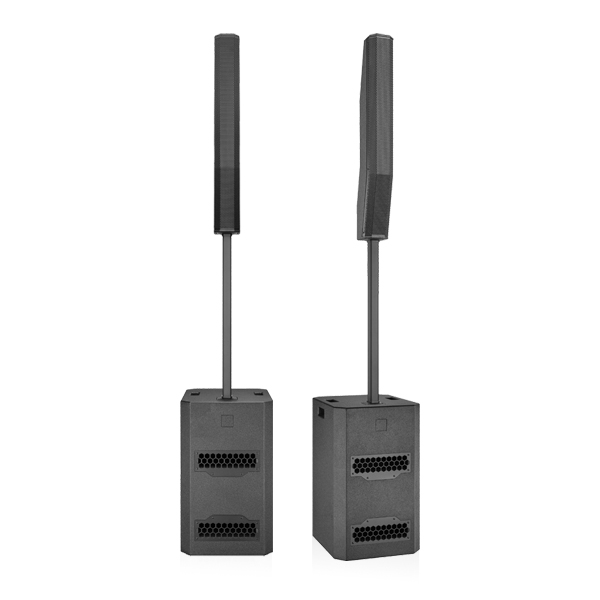

LA0316 Active Column Array Speaker System with 12 Inch Subwoofer - 翻译中...

विशेषताएं

● 8 × 3” full-range drivers deliver clear and natural mid-high frequencies.
● 12” subwoofer provides deep and powerful low-frequency performance.
● Built-in DSP with FIR filtering ensures precise and optimized sound tuning.
● Supports PEQ, crossover, delay, limiter, phase, and gain adjustment.
● High SPL output suitable for professional sound reinforcement applications.
● Supports XLR and TRS audio input connections.
● Built-in USB playback with MP3 format support.
● Integrated Bluetooth for wireless audio streaming.
● Supports TWS function for wireless stereo linking between two speakers.
● DSP control via PC software for flexible parameter configuration.
● Real-time monitoring of input/output levels and system status.
● Supports preset saving, recall, upload, and download.
● Dual voltage selection (110V / 220V) for flexible power compatibility.
● Built-in limiter protection ensures safe and stable operation.
● Slim column design with wide horizontal sound coverage.
● Compact structure for easy transport and installation.

अब संपर्क करें संदेश छोड़ दें डाउनलोड करना

परिचय
विनिर्देशन

翻译中...

Model	LA0316
3”×8 Column Speaker
Drive Unit	MF: 3”×8 (25mm Voice Coil)
Rated Power	160W
Program Power	320W
Peak Power	640W
Impedance	4Ω
Frequency Response	98Hz~16kHz
Sensitivity	96dB
Max. SPL	118dB
Signal Input	Dedicated Link Connector
Directivity Angle	100°(H)×20°(V)
Product Dimensions (H×W×D)	810×105×140mm
Package Dimensions (H×W×D)	860×360×240mm (2PCS/CTN)
Net Weight	6.5kg
Gross Weight	18kg
Single 12” Subwoofer
Drive Unit	LF: 12”×1 (75mm Voice Coil)
Rated Power	300W
Program Power	600W
Peak Power	1200W
Impedance	4Ω
Frequency Response	38Hz~200Hz
Sensitivity	96dB
Max. SPL	121dB
Signal Input	2×XLR / TRS
Supported Function	BT / USB / MP3 / TWS
Product Dimensions (H×W×D)	600×365×450mm
Package Dimensions (H×W×D)	686×435×520mm
Net Weight	21kg
Gross Weight	24kg
