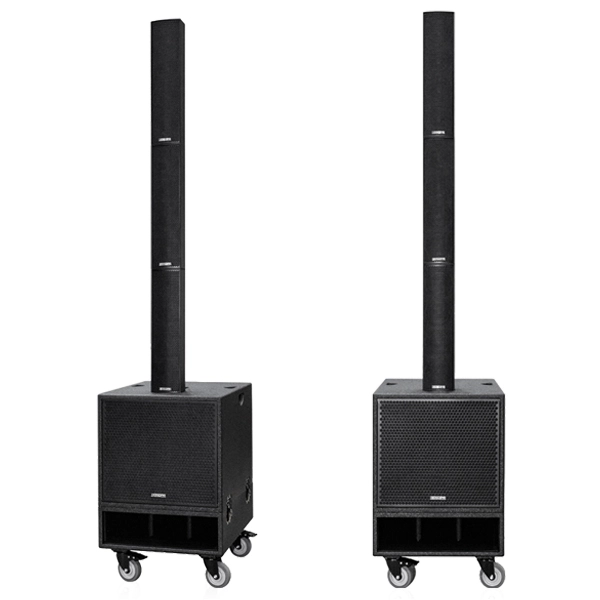

LA-4241B LA-180SUB Portable Line Array Sound System - 翻译中...

विशेषताएं

● 4×4" full-range speaker units for high clarity and balanced sound reproduction across a wide frequency range.
● 18" woofer unit in the subwoofer for powerful low-frequency output, enhancing bass performance.
● Telescoping support pole with cable for easy adjustment and flexibility during setup, ensuring ideal sound projection.
● Full-Range Speaker with Aluminum Alloy Enclosure and waterproof sound mesh for durability.
● Detachable full-range speakers that can be conveniently stored inside the bass reflex port of the subwoofer for compact storage and transport.
● Equipped with four 4-inch silent wheels with brakes, ensuring easy mobility and stability during setup and use.
● The system is suitable for both mobile and fixed installations, such as banquet halls, conference rooms, and outdoor venues.

अब संपर्क करें संदेश छोड़ दें डाउनलोड करना

परिचय
विनिर्देशन

翻译中...

Model	LA-4241B
Speaker Unit	4 × 4" Full-range Drivers
Rated Power	280W @ 8Ω / 800W (peak)
Frequency Range	100Hz-20kHz
Sensitivity(1W/1m)	98dB
SPL	120dB (Continuous), 130dB (Peak)
Nominal Impedance	16Ω
Nominal Coverage Angle (H × V)	120° × 80°
Crossover Frequency	120Hz
Connectors	Two Neutrik NL4 Sockets (1-/1+)
Enclosure Material	Aluminum Alloy
Product Dimension(W×H×D)	125 × 500 × 138mm
Product Weight	7.2kg

Model		LA-180SUB
Speaker Unit		1 × 18" Woofer, 220mm Magnet / 100mm Voice Coil
Rated Power		1000W (Continuous), 4000W (Peak)
Frequency Response		28Hz - 300Hz
Sensitivity(1W/1m)		92dB
SPL		131dB (Continuous), 136dB (Peak)
Nominal Impedance		8Ω
Crossover Frequency		120Hz
Connectors		One Neutrik NL4 Socket
Product Dimension(W×H×D)		502 ×608 × 650mm
Product Weight		35kg
Amplifier Module	Power Configuration	1600W + 800W @ 8Ω
	Frequency Response	20Hz - 20kHz (-0.5dB at 1/8 Output Power)
	SNR	≥101dB (A-Weighted)
	Damping Factor	500
	Input Sensitivity/Impedance	1.2V / 22kΩ
	THD	≤0.05%
	Input Voltage	~90V - 270V, 50/60Hz (PFC Power Supply)
	Output Circuit Type	Class D
	Protection Features	Overload Protection, Overvoltage Protection, Undervoltage Protection, Overheat Protection, Short Circuit Protection, DC Protection, etc.
	DSP Decoder Chip	96kHz Sampling Rate
