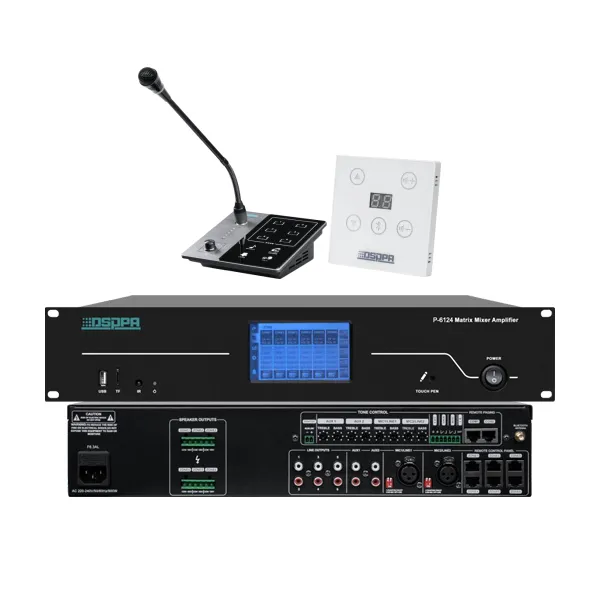

P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System - 翻译中...

विशेषताएं

● Multi-zone amplifier with independent source control for each zone, equipped with a 4.3-inch resistive touch screen and push-button power switch.
● Supports 100V constant-voltage output, configurable through the system.
● Chime function can be operated through the touch screen, with customizable chime and alarm sounds via USB.
● Alarm function can be triggered via dry contacts (2P of the 7P Phoenix 3.81mm connector) on the rear panel.
● Bass and treble adjustment available for AUX1, AUX2, MIC1/LINE1, and MIC2/LINE2 (rear panel).
● Equipped with 2 XLR input connectors for MIC1/LINE1 and MIC2/LINE2, selectable between 48V phantom-powered MIC, standard MIC, or LINE input via independent DIP switches.
● 2 RCA input connectors for AUX1 and AUX2 (rear panel).
● Zone monitoring function, with monitoring volume synchronized with the zone volume.
● Priority Level:
● MUTE > EMC IN > ALARM > CHIME > Remote Paging Mic > Remote Paging Mic Override AUX/MP3 > Bluetooth Touch Panel > AUX1 = AUX2 = MIC1/LINE1 = MIC2/LINE2 = MP3 = BT = FM
● 6 LINE OUT (RCA) output connectors corresponding to each channel.
● 6 Bluetooth wall panel interfaces with fixed zone addresses, DC 48V power supply, transmission distance up to 300–600 meters per channel.
● Allows control of audio source and volume of the corresponding zone only through the Bluetooth panel.
● 2 RJ-45 remote paging microphone interfaces, supporting paging to specific zones or all zones.
● Up to 6 paging microphones can be connected in cascade.
● Powered by DC 48V, with transmission distance up to 300–600 meters per channel.
● Allows control of AUX1 or MP3 playback for all zones and adjustment of the audio source volume via the paging microphone.
● 1 Phoenix 3.81mm connector (1P/7P) for FM antenna.
● 1 Phoenix 3.81mm connector (2P/7P) for EMC IN.
● 1 Phoenix 3.81mm connector (2 pins of 7 pins) for Mute.
● 1 Phoenix 3.81mm connector for monitor speaker output, linked to zone volume.
● 6 two-pin 5.08mm terminal block power output interfaces.
● Independent Bluetooth antenna.
● Designed for AC 220–240V power supply.
